Overview

Completed a hands-on IoT Cyber Defense externship focused on securing real-world IoT infrastructure for a simulated 500-room smart hotel environment. This program covered threat modeling, secure pipeline design, device identity, encryption, replay attack prevention, monitoring, and AI-based anomaly detection.

The externship simulates the responsibilities of a security engineer defending production-grade IoT systems, with an emphasis on both offensive testing and defensive implementation.

Final Presentation 🎤

Deliverable

📄 View Final Presentation (PDF)

Key Highlights

  • Walked through the full attack lifecycle:
    • Eavesdropping on insecure MQTT traffic
    • Message injection and data manipulation
    • Replay attack execution
  • Demonstrated how each attack was successfully mitigated using:
    • TLS encryption
    • Mutual TLS (mTLS) authentication
    • Timestamp and counter-based replay protection
  • Showcased a real-time security dashboard for monitoring IoT telemetry
  • Presented AI-based anomaly detection using Isolation Forest

Outcome

  • Achieved 100% attack prevention after implementing security controls
  • Transformed an insecure IoT pipeline into a production-ready secure system
  • Demonstrated practical security engineering skills across the full stack

Key Takeaway

Effective IoT security requires layered defenses — encryption, identity, validation, and monitoring must work together to fully protect systems.

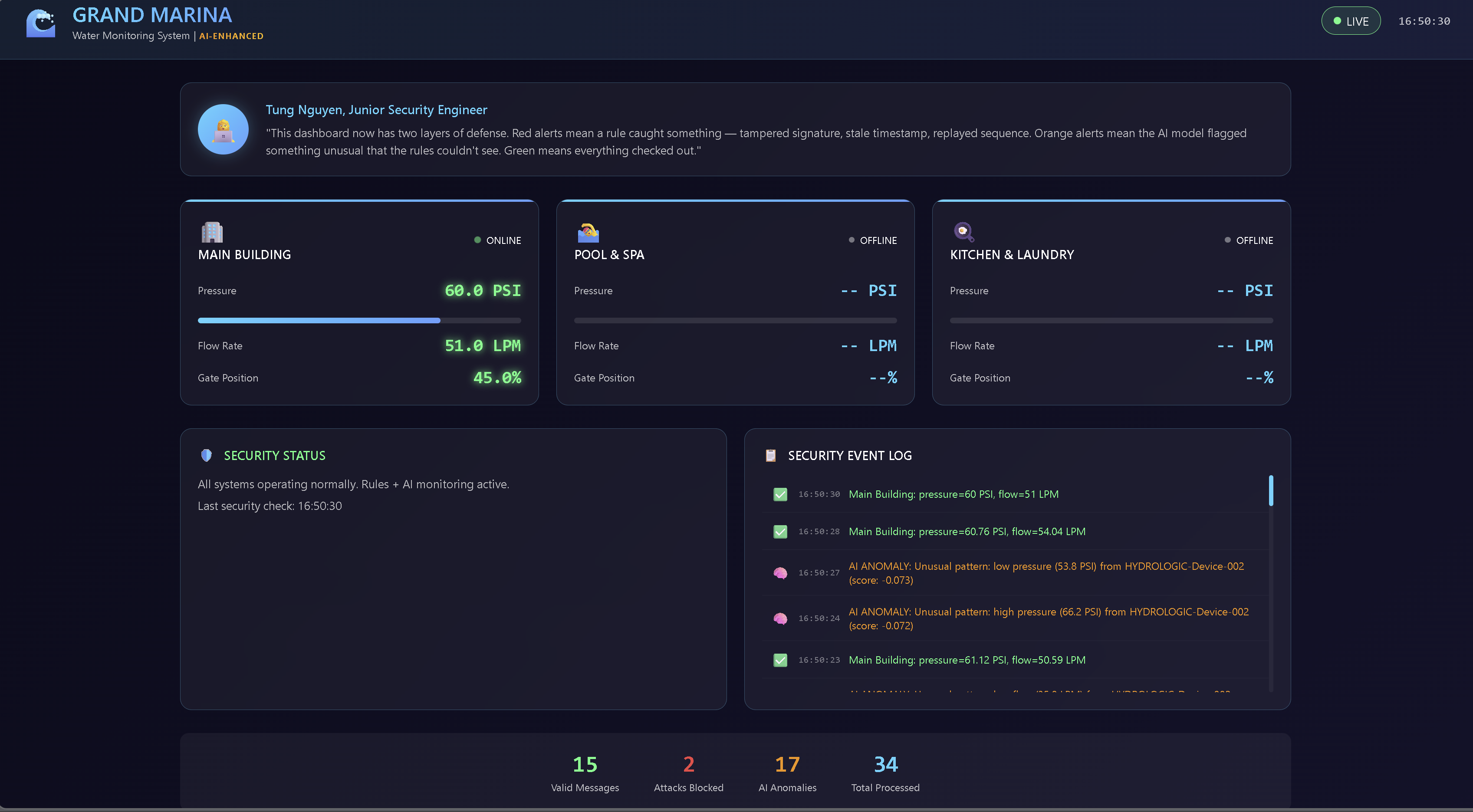

Live IoT Security Dashboard

IoT Security Dashboard

Real-time security dashboard built with Streamlit to monitor device telemetry, detect anomalies, and visualize system health across the IoT pipeline.

  • Live flow rate and pressure tracking
  • Automated anomaly detection alerts
  • Detection of leaks, spoofed data, and stuck sensors

Project 1: IoT Systems & Threat Modeling ✅

Deliverable

📄 View Threat Model (PDF)

Objective

Develop a structured threat model for a simulated smart water management system supporting a 500-room IoT-enabled hotel.

Work Completed

  • Applied the CIA Triad to IoT infrastructure
  • Identified six primary IoT attack vectors
  • Used STRIDE methodology to systematically uncover vulnerabilities
  • Documented risks across authentication, message integrity, and device trust boundaries

Key Skills

  • Threat modeling
  • STRIDE framework
  • Risk analysis
  • Security architecture evaluation

Key Takeaway

Threat modeling forces clarity. Many vulnerabilities were not obvious until system boundaries and trust relationships were explicitly mapped.

Project 2: Python for IoT Security ✅

Deliverable

📄 Download Sample Dataset

Objective

Built a mock Hydroficient HYDROLOGIC water sensor to simulate realistic IoT telemetry for downstream security testing and anomaly detection.

Implementation Highlights

  • Designed a WaterSensor class in Python
  • Generated ISO 8601 UTC timestamps
  • Implemented sequential counters for replay attack detection
  • Simulated realistic pressure and flow values
  • Injected controlled anomalies:
    • Leak (abnormally high flow rate)
    • Blockage (pressure imbalance)
    • Stuck sensor (static readings)
  • Generated and exported 100 structured JSON records

Sample Output

{
  "device_id": "GM-HYDROLOGIC-01",
  "timestamp": "2026-02-19T03:35:05.551904+00:00",
  "counter": 6,
  "pressure_upstream": 81.3,
  "pressure_downstream": 75.9,
  "flow_rate": 99.5
}

Project 3: Building an Insecure MQTT Pipeline ✅

Deliverable

📄 Download Vulnerability Assessment of Insecure MQTT Pipeline

Objective

Construct and exploit an intentionally insecure MQTT data pipeline to understand real-world interception, tampering, and replay risks in IoT environments.

Work Completed

  • Deployed a local Mosquitto MQTT broker
  • Configured Python-based telemetry publisher and dashboard subscriber
  • Transmitted unencrypted telemetry over default MQTT port 1883
  • Intercepted live MQTT traffic using wildcard topic subscriptions (#)
  • Demonstrated message injection and replay attack scenarios

Security Findings

  • No TLS encryption (all data transmitted in plain text)
  • No client authentication required to connect to the broker
  • No topic-level authorization controls
  • No message integrity verification or replay protection

Key Skills

  • MQTT protocol fundamentals
  • Network traffic interception
  • Publish/subscribe exploitation
  • IoT attack surface analysis

Key Takeaway

IoT systems are insecure by default. Without encryption, authentication, and access control, attackers can silently observe, manipulate, or disrupt operational data flows.

Project 4: Securing the Pipeline with TLS ✅

Deliverable

📄 Download Secure MQTT Configuration & TLS Setup

Objective

Harden the MQTT pipeline using encryption, authentication, and access control.

Implementation Highlights

  • Configured Mosquitto to enforce TLS (port 8883)
  • Generated and managed X.509 certificates
  • Implemented TLS for device authentication

Key Takeaway

Strong encryption and identity enforcement transform MQTT into a secure communication layer.

Project 5: Device Identity & Secure Provisioning ✅

Deliverable

📄 Download Device Identity & Provisioning Report

Objective

Prevent rogue device access using certificate-based identity.

Work Completed

  • Implemented unique client certificates per device
  • Established PKI-based identity verification
  • Blocked unauthorized device connection attempts

Key Takeaway

Device identity is critical to preventing impersonation attacks.

Project 6: Replay Attack Simulation & Defense ✅

Deliverable

📄 Download Replay Attack Analysis

Objective

Simulate replay attacks and implement detection mechanisms.

Work Completed

  • Replayed captured MQTT messages
  • Implemented timestamp + counter validation
  • Rejected duplicate and stale messages

Key Takeaway

Replay protection requires both time-based and sequence-based validation.

Project 7: Real-Time Security Dashboard ✅

Deliverable

📄 View Dashboard Demo / Screenshots

Objective

Build a live monitoring system for IoT telemetry.

Implementation Highlights

  • Built dashboard using Streamlit
  • Visualized real-time telemetry and anomalies
  • Highlighted suspicious patterns

Key Takeaway

Real-time visibility is essential for detecting and responding to threats.

Project 8: AI-Based Anomaly Detection ✅

Deliverable

📄 View Anomaly Detection Report

Objective

Detect abnormal IoT behavior using machine learning.

Implementation Highlights

  • Applied Isolation Forest
  • Detected spoofed data and abnormal patterns
  • Evaluated model performance on injected anomalies

Key Takeaway

AI enables detection of complex, non-obvious attack patterns.

Technologies Used

  • Python
  • Pandas
  • MQTT (Mosquitto)
  • TLS / mTLS
  • X.509 Certificates
  • Streamlit
  • Isolation Forest
  • STRIDE Threat Modeling

Final Outcome

  • Built and exploited insecure IoT systems
  • Implemented full-stack security defenses
  • Achieved 100% attack mitigation
  • Developed monitoring and AI-based detection

Status

✅ Completed (All 8 Projects)
