Lab: Kali (OpenVAS/CIS Benchmark) → Metasploitable - Multi-vulnerability Remediation

Author: Tung Nguyen
Date: 2025-11-05
Environment: Kali attacker VM + Metasploitable target VM (host-only network)

---

Summary

This lab demonstrates the discovery and remediation of high-impact vulnerabilities on a Metasploitable 2 VM using Greenbone/OpenVAS (GVM) as the primary scanning tool. Given that Metasploitable 2 contains hundreds of intentionally vulnerable services, this project focuses on realistic and critical issues, guided by the CIS Ubuntu Linux Benchmark to prioritize remediation.

Each vulnerability is documented with:

• Pre-remediation evidence (OpenVAS scan, nmap, service testing, screenshots)
• Root cause analysis
• Remediation steps aligned with CIS guidance
• Post-remediation verification

This approach ensures reproducibility, demonstrates secure configuration practices, and aligns lab remediation with industry standards.

---

Environment & VM configuration

• Hypervisor: VirtualBox / VMware
• Kali VM: 6 GB RAM, 2 CPU, host-only network
• Metasploitable VM: 1 GB RAM, 1 CPU, host-only network
• Tools used: Greenbone/OpenVAS (GVM), nmap, ss/netstat, bash, basic Linux utilities

---

Workflow Summary

1. Boot Kali and Metasploitable VMs on an isolated host-only network.
2. Identify the target IP with host discovery (nmap).
3. Start Greenbone/OpenVAS (gvm-start) and run a full system scan.
4. Review OpenVAS results and map each finding to relevant CIS Ubuntu Linux Benchmark controls.
5. Prioritize vulnerabilities using CIS guidance (disable insecure services, remove backdoors, enforce authentication, update legacy software).
6. Investigate each finding on the Metasploitable VM (inetd.conf, service configs, version checks, credential testing).
7. Apply remediation according to CIS recommendations (disable service, remove package, enforce password, etc.).
8. Re-scan with OpenVAS and validate remediation (port closed, login blocked, service removed).
9. Document all evidence and before/after comparisons.

---

Table of Contents (CIS Benchmark Aligned)

1. Initial Setup - Secure OS Defaults

• Future Work!

2. Services - Disable, Remove Insecure Services

• Ingreslock Backdoor (Port 1524)
• Rexec / r-services (Port 512)
• rlogin Passwordless Login (Port 513)
• vsftpd 2.3.4 Backdoored Version (Ports 21 & 6200)
• Distributed Ruby (dRuby/DRb) RCE (Port 8787)
• Telnet Unencrypted Cleartext Login (Port 23)
• rsh Unencrypted Cleartext Login (Port 514)
• FTP Unencrypted Cleartext Login (Port 2121)
• DistCC Remote Code Execution (Port 3632)

3. Network Configuration - Limit Remote Exposure

• Restricted PostgreSQL (Port 5432) to admin host (See Section 7: SSL/TLS OpenSSL CCS Injection Vulnerability for details)

4. Host-Based Firewall - Traffic Filtering

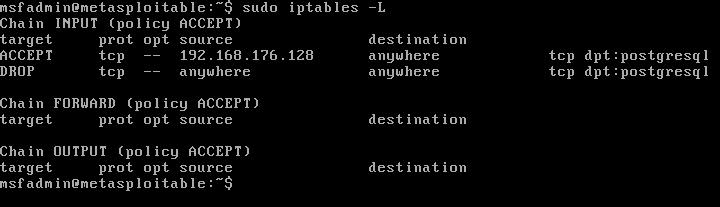

• Implemented iptables rules to restrict PostgreSQL (Port 5432) access to the admin host only

5. Access Control - Authentication & Permissions

• MySQL / MariaDB Default Credentials (Port 3306)

6. Logging & Auditing - Event Monitoring

• Future Work!

7. System Maintenance - Patching & Integrity

• SSL/TLS: OpenSSL CCS Injection Vulnerability (Port 5432)

---

Vulnerability: Ingreslock Backdoor (Port 1524)

Severity: High
OpenVAS ID / Reference: NVT – TCP Port 1524: Ingreslock Backdoor

Description (short):
The inetd configuration contained an entry that spawned /bin/bash as root when the service was contacted. This effectively functions as a backdoor, allowing anyone who can connect to that port to obtain a root shell.

Evidence (pre-remediation):

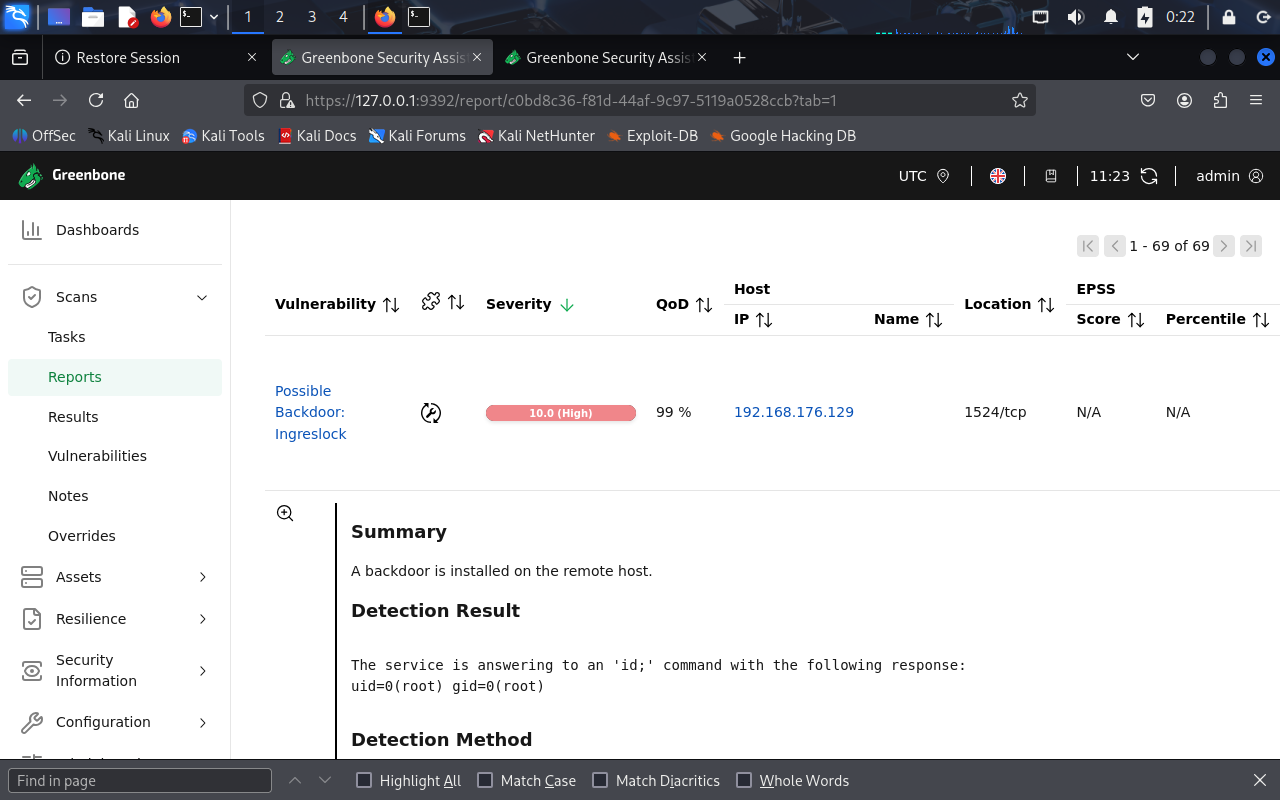

• OpenVAS finding screenshot:

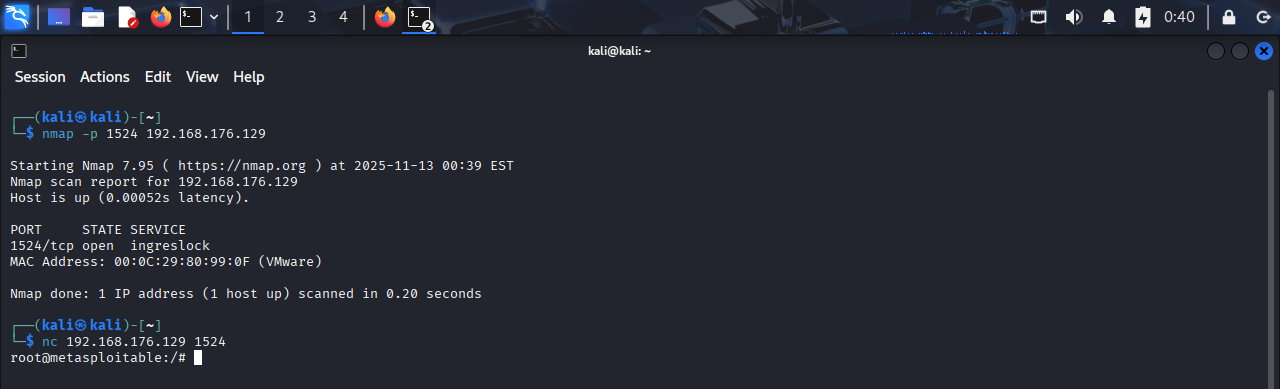

• nmap scan showing port 1524 open (before remediation):

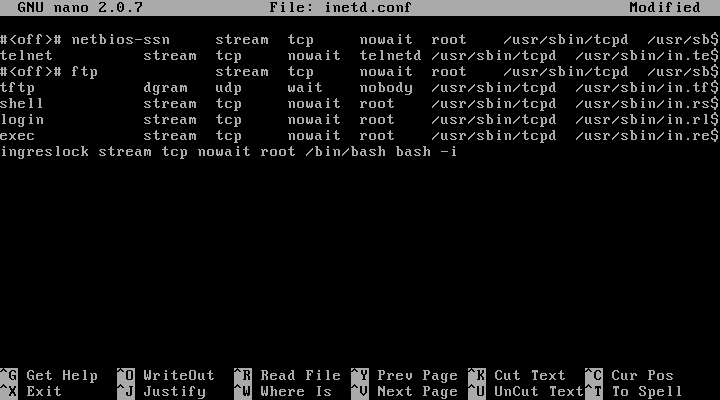

• Snippet of /etc/inetd.conf showing the malicious entry:

Root cause analysis:
A line in /etc/inetd.conf mapped the ingreslock service to /bin/bash and ran it as root. Since inetd launches the configured program with root privileges, any network connection to that service resulted in a root shell being spawned.

Remediation performed:

1. Removed the malicious ingreslock line (ingreslock stream tcp nowait root /bin/bash bash -i) from /etc/inetd.conf.
2. Reboot to apply the change.
3. Scan again using nmap to make sure the port is closed and unable to netcat to it anymore.

---

Vulnerability: Rexec / r‑services (Port 512)

Severity: High
OpenVAS ID / Reference: NVT – TCP Port 512: rexec (r‑services)

Description (short):
The target exposes the legacy rexec (r‑services) daemon on TCP port 512. R‑services transmit credentials in plaintext and are considered insecure; an exposed rexec allows remote command execution and is a significant misconfiguration.

Evidence (pre-remediation):

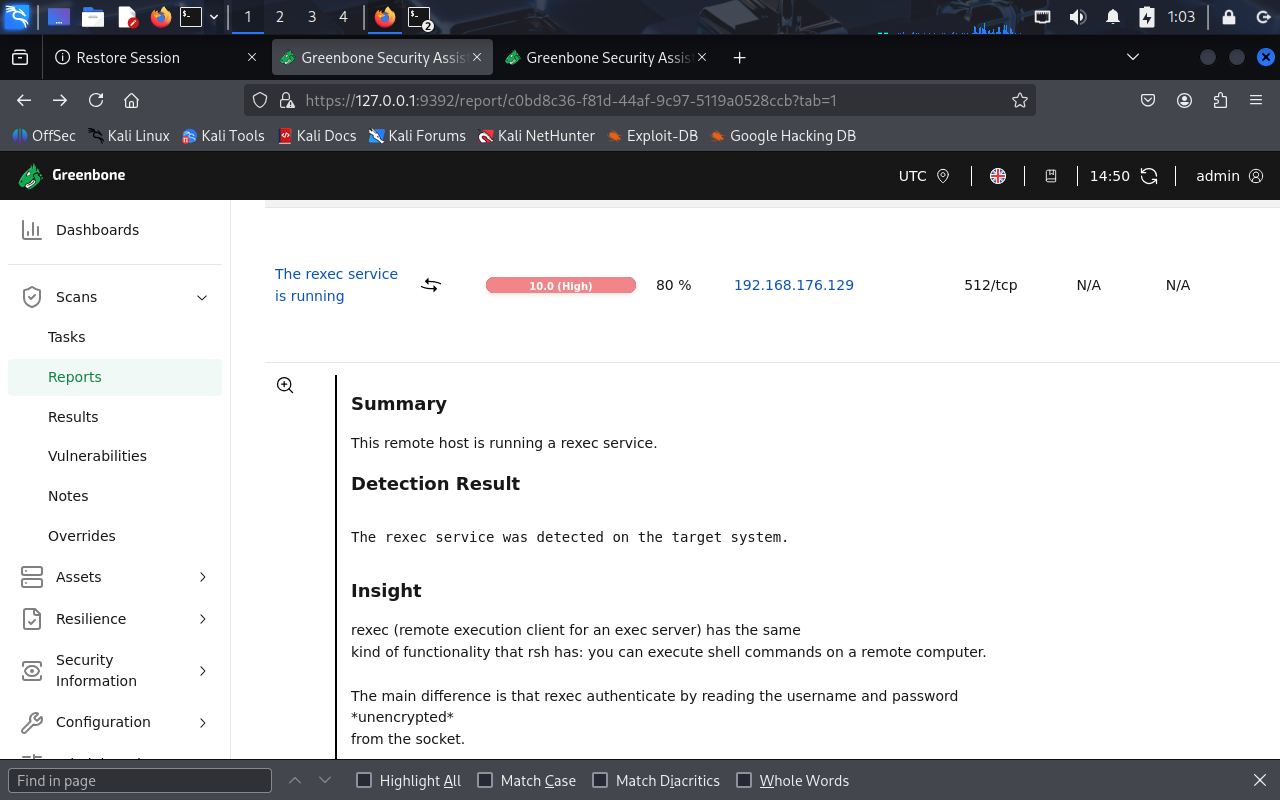

• OpenVAS finding screenshot:

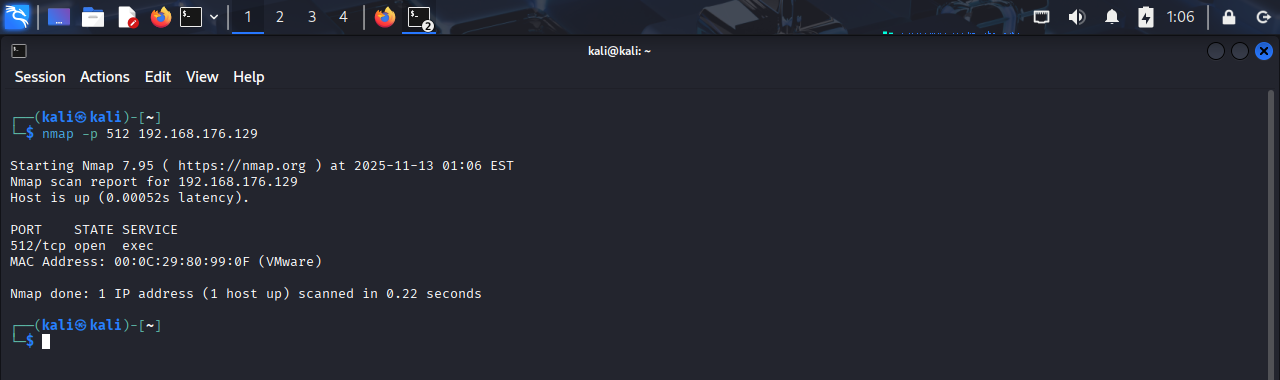

• nmap scan showing port 512 open (before remediation):

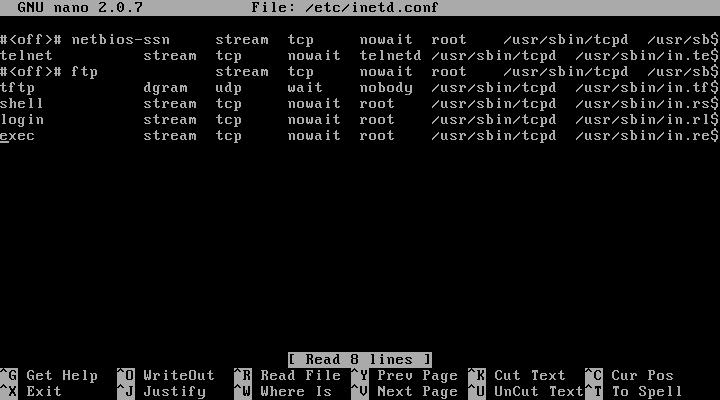

• inetd configuration showing the rexec entry (example):

  Observed line (lab):
  exec stream tcp nowait root /usr/sbin/tcpd /usr/sbin/in.rexecd

Root cause analysis:
The rexec service was enabled via the system’s inetd configuration. Because rexec performs plaintext authentication and is rarely required, having it enabled on a networked host exposes credentials and allows remote execution.

Remediation performed:

1. Removed/disabled the rexec entry (exec stream tcp nowait root /usr/sbin/tcpd /usr/sbin/in.rexecd) from the inetd configuration.
2. Reboot to apply the change.
3. Scan again using nmap to make sure the port is closed.

---

Vulnerability: MySQL / MariaDB Default Credentials (Port 3306)

Severity: High
OpenVAS ID / Reference: NVT – MySQL / MariaDB Default Credentials (MySQL Protocol)

Description (short):
The MySQL server allowed authentication as root with an empty password, permitting administrative access to the database service.

Evidence (pre-remediation):

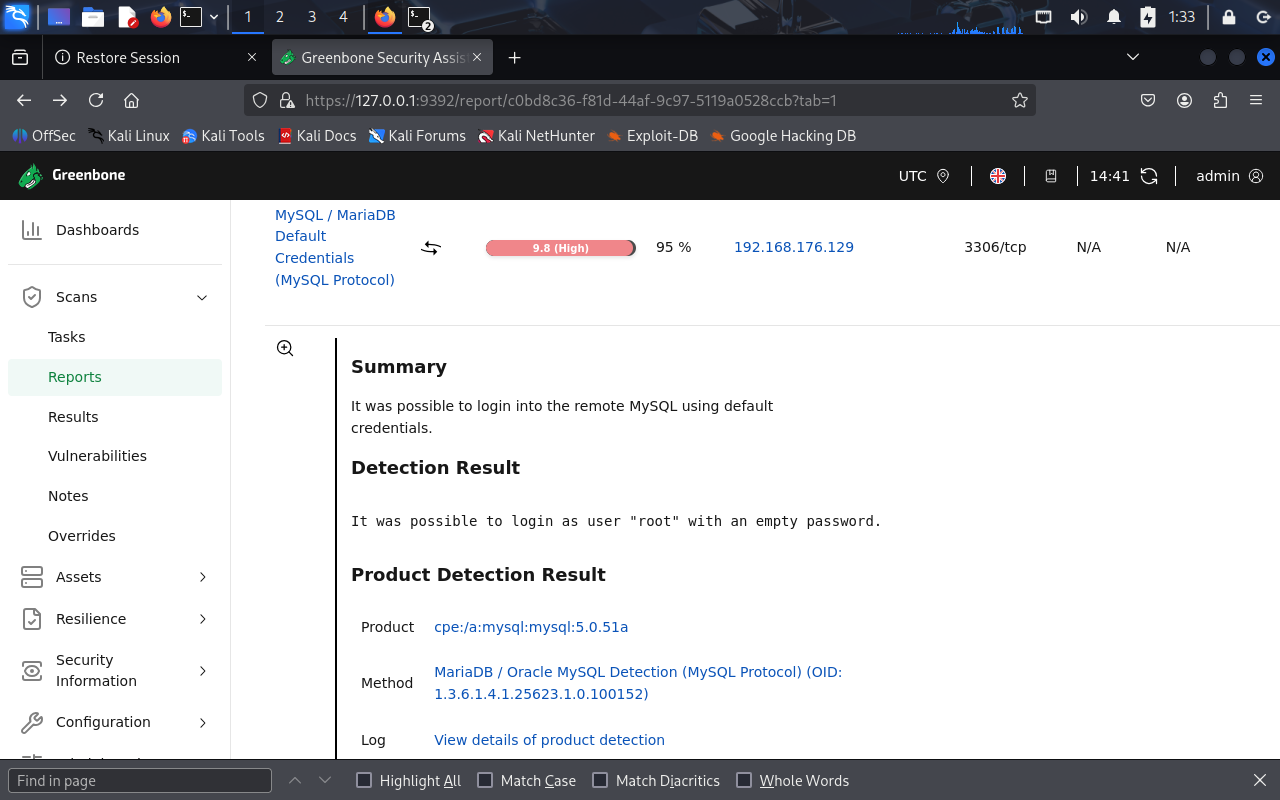

• OpenVAS finding screenshot:

• Lab test: successful login as root with no password (before remediation):


Root cause analysis:
The MySQL instance was left with a blank/weak root password and accepted remote connections. This allowed unauthenticated administrative access. On many intentionally vulnerable images (like Metasploitable) default credentials are present for testing, but on real systems this represents a critical misconfiguration.

Remediation performed:

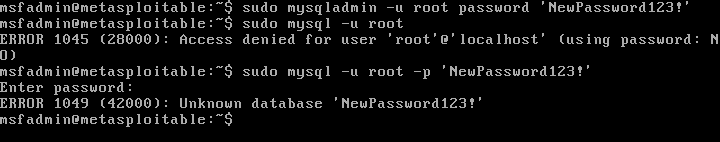

1. Logged into the MySQL server locally (lab) and set a strong root password.
2. Test login again without password -> Failed
3. Test login again with password -> Success

---

Vulnerability: vsftpd 2.3.4 Backdoored Version (Ports 21 & 6200)

Severity: High
OpenVAS ID / Reference: NVT – vsftpd Compromised Source Packages Backdoor Vulnerability (CVE-2011-2523)

Description (short):
The system was running the backdoored version of vsftpd 2.3.4, which contains a hidden backdoor that spawns a remote shell on port 6200/tcp when triggered by a malformed FTP login (username containing :)). This allows full remote compromise of the host.

Evidence (pre-remediation):

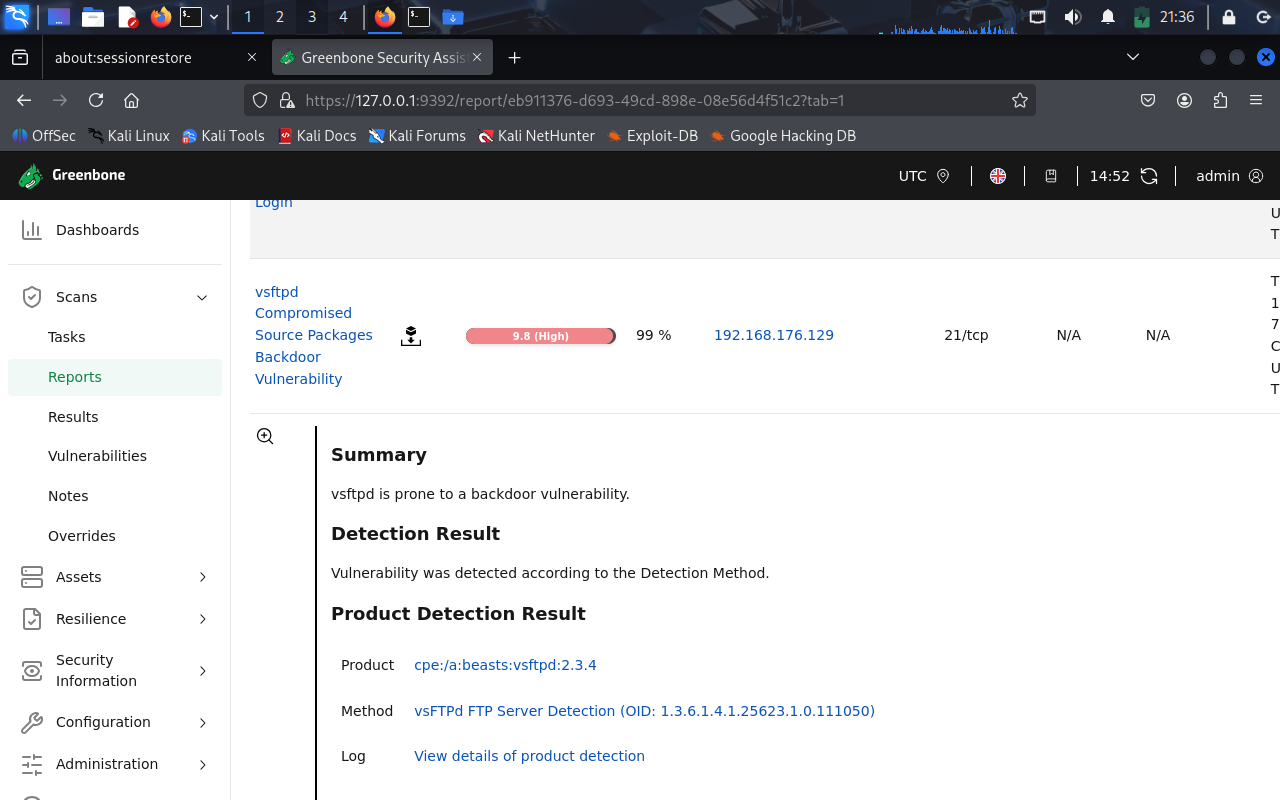

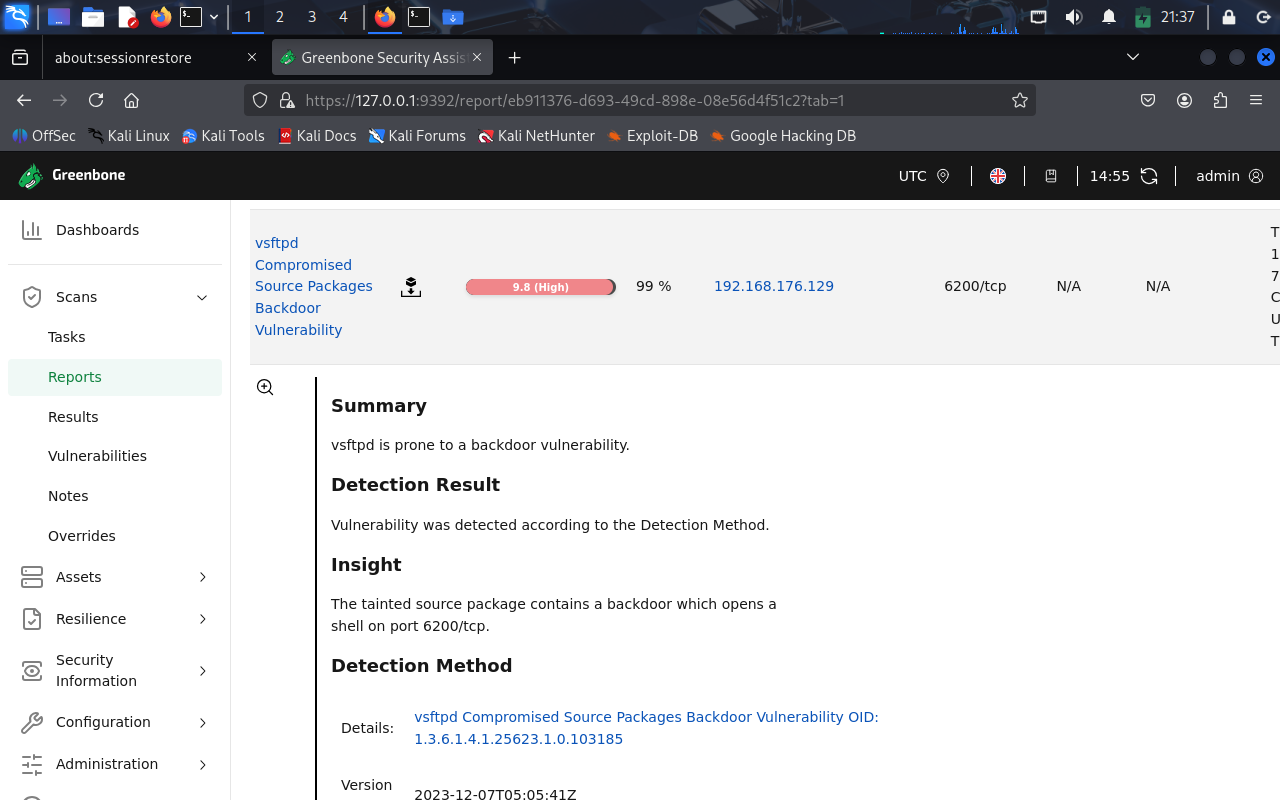

• OpenVAS finding showing vsftpd 2.3.4 running on port 21 and 6200:

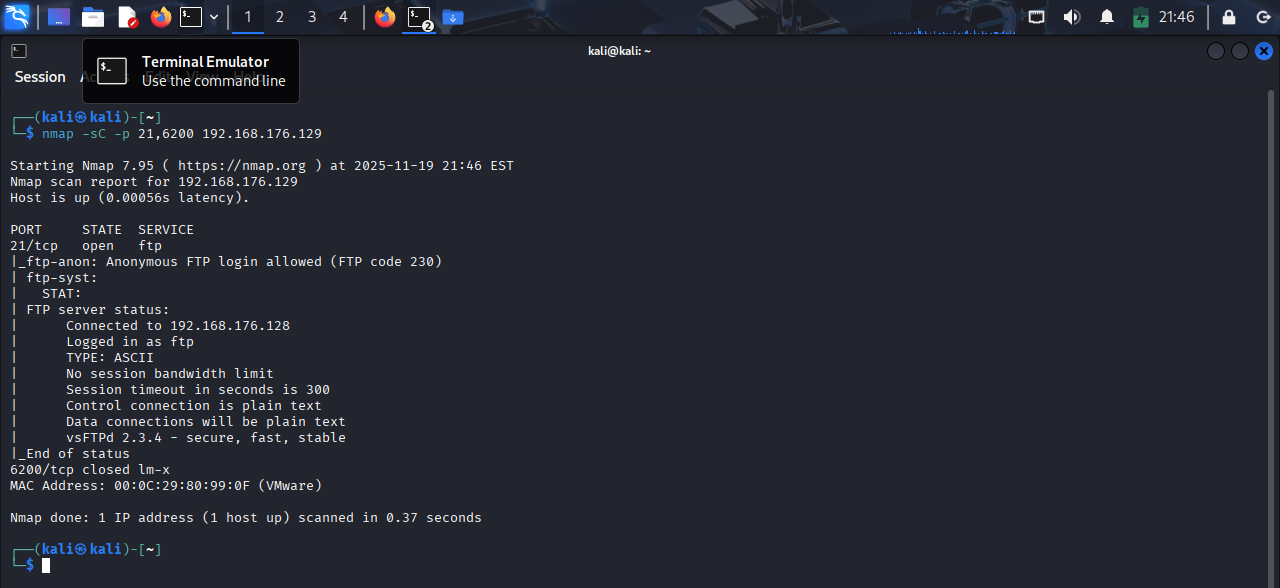

• Nmap showing vsftpd version 2.3.4 running:

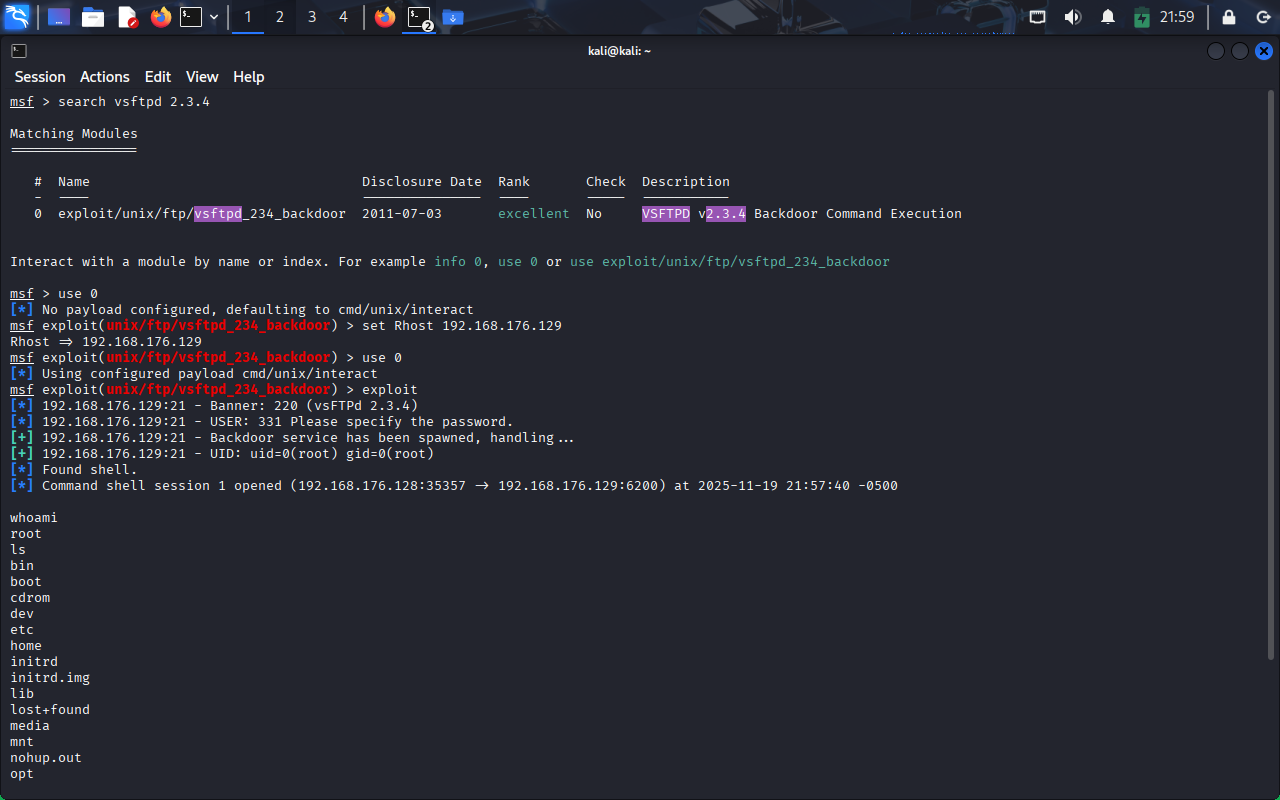

• Metasploit successfully exploited the backdoor and obtained a shell:


Root cause analysis:
A compromised upstream source package of vsftpd 2.3.4 was installed. This tainted version was distributed for several days in July 2011, and any system using it exposes a built-in backdoor. When triggered, the service opens a command shell on port 6200, giving attackers full remote code execution.

Remediation performed:

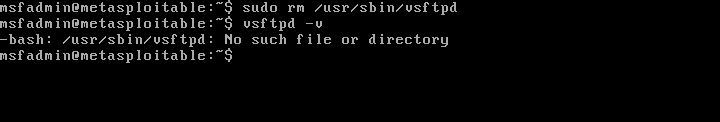

1. Since Metasploitable 2 uses outdated repositories and cannot be updated normally, the secure remediation is to remove the vulnerable vsftpd 2.3.4 entirely.
2. Verified that:

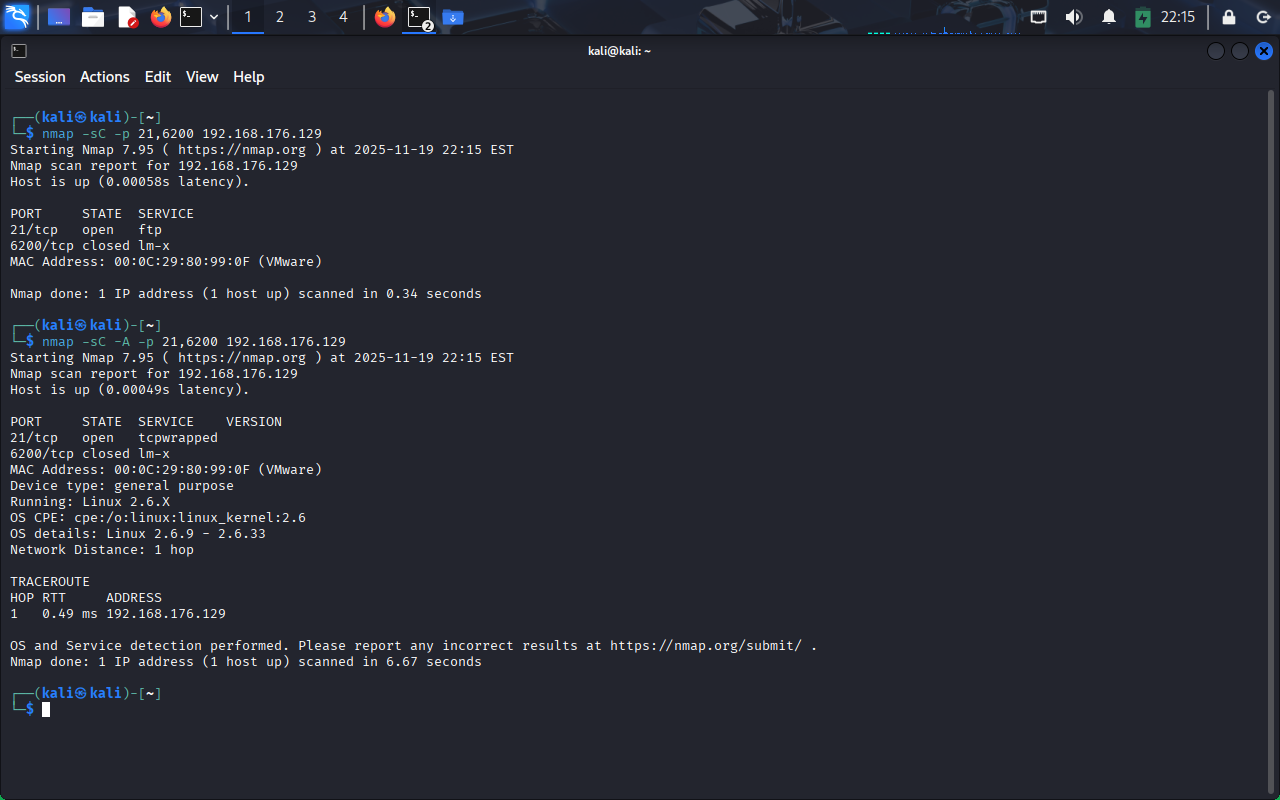

   • Port 21 no longer runs vsftpd 2.3.4 and Port 6200 is closed:

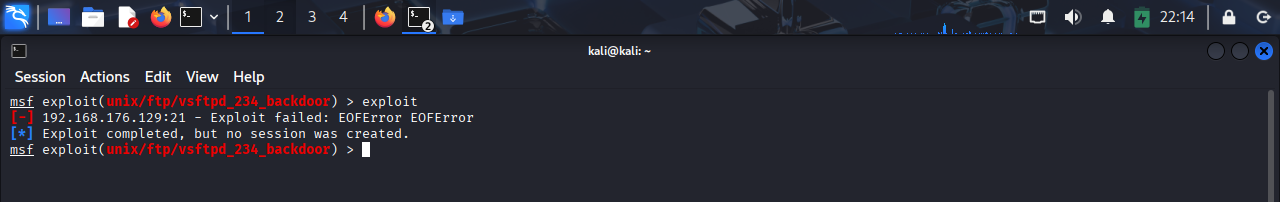

   • Metasploit now fail:

---

Vulnerability: rlogin Passwordless Login (Port 513){#vulnerability-rlogin-passwordless-login-port-513}

Severity: High
OpenVAS ID / Reference: NVT – rlogin Service Allows Passwordless Login

Description (short):
The rlogin service on port 513 allowed remote login without requiring a password, giving attackers direct shell access over the network. This is caused by legacy r‑services being enabled in /etc/inetd.conf.

Evidence (pre-remediation):

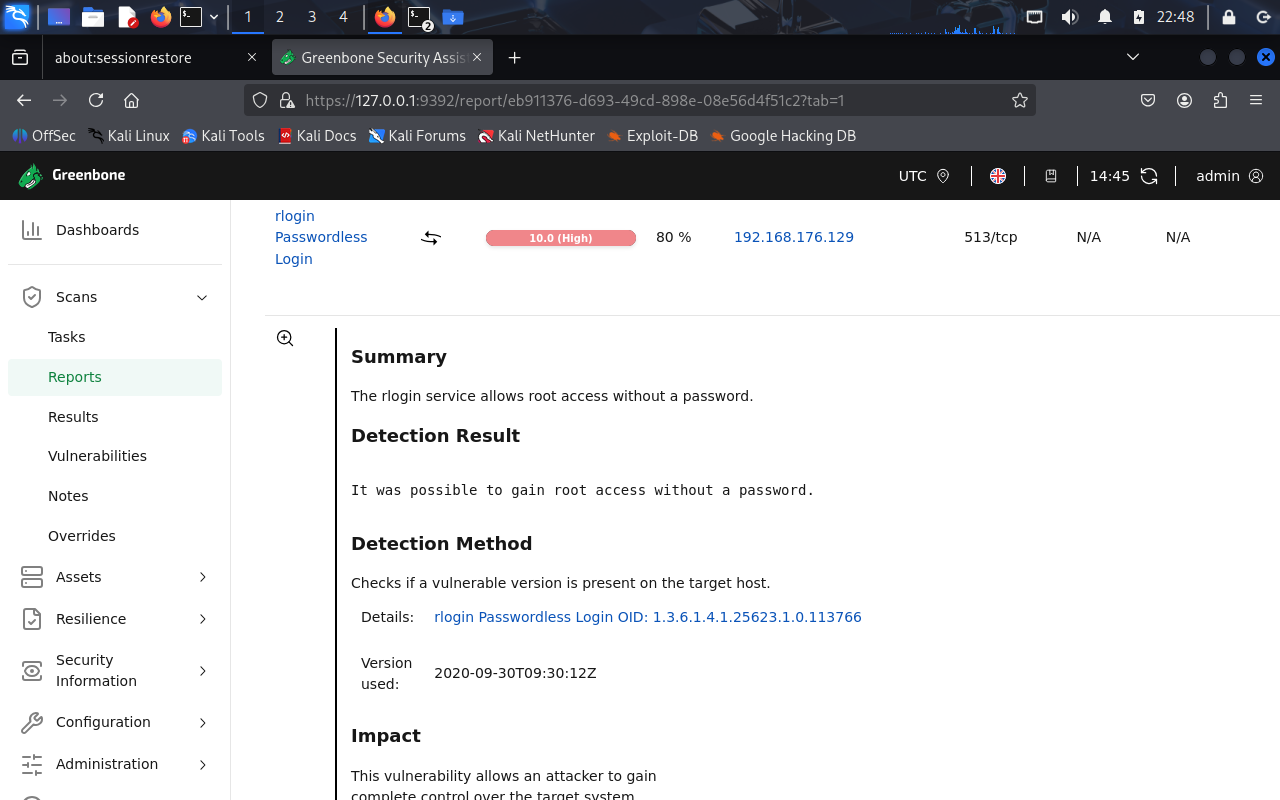

• OpenVAS finding screenshot:

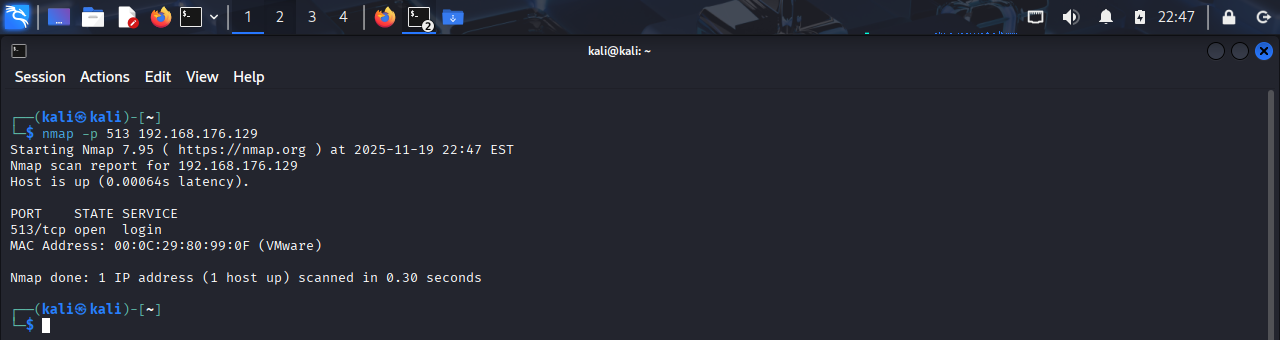

• nmap scan showing port 513 open:

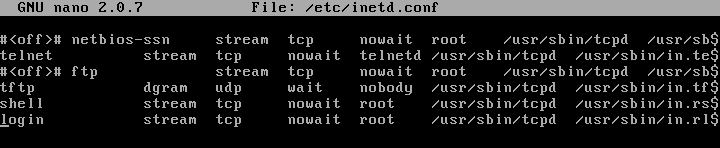

• Snippet of /etc/inetd.conf showing the malicious entry:
• Successful attempt to use rlogin passwordless:

Root cause analysis:
The Metasploitable machine had the legacy rlogind service enabled through inetd. The following entry existed in /etc/inetd.conf: login stream tcp nowait root /usr/sbin/tcpd /usr/sbin/in.rlogind rlogin trusts remote hosts and uses plaintext communication, often allowing logins with no password, resulting in full user compromise (and privilege escalation in many cases).

Remediation performed:

1. Removed the malicious line from /etc/inetd.conf.
2. Reboot to apply the change.

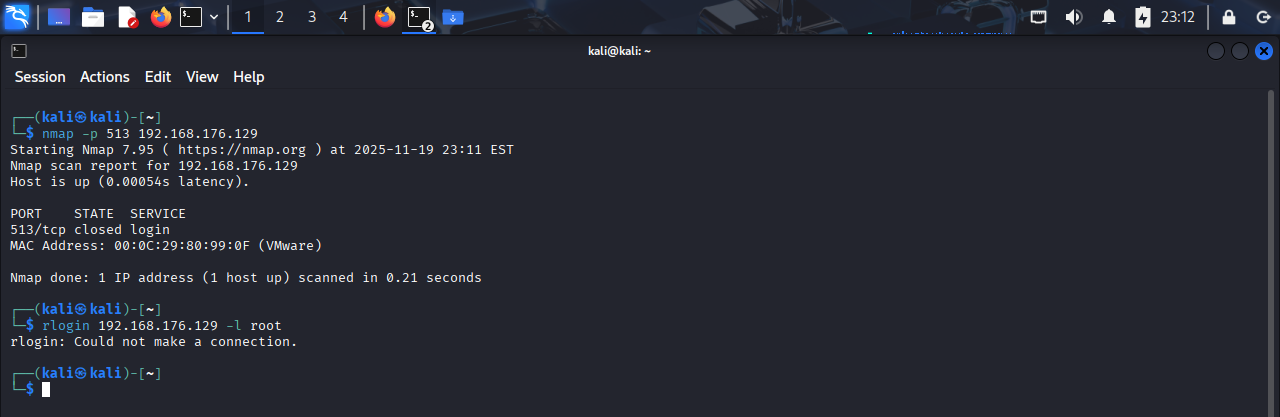

3. Scan again using nmap to make sure the port is closed and unable to attemp passwordless rlogin:

---

Vulnerability: Distributed Ruby (dRuby/DRb) Multiple RCE Vulnerabilities (Port 8787){#vulnerability-druby-rce-port-8787}

Severity: High (CVSS 10.0)
OpenVAS ID / Reference: NVT – Distributed Ruby (dRuby/DRb) Multiple RCE Vulnerabilities

Description (short):
Distributed Ruby (DRb) allows Ruby objects to communicate over a network.
By default, DRb does not restrict which clients may connect or what methods they can invoke.
When the service is exposed on a network interface without ACLs, $SAFE restrictions, or input validation, attackers can execute arbitrary Ruby expressions, including syscall, resulting in remote code execution (RCE).

Evidence (pre-remediation):

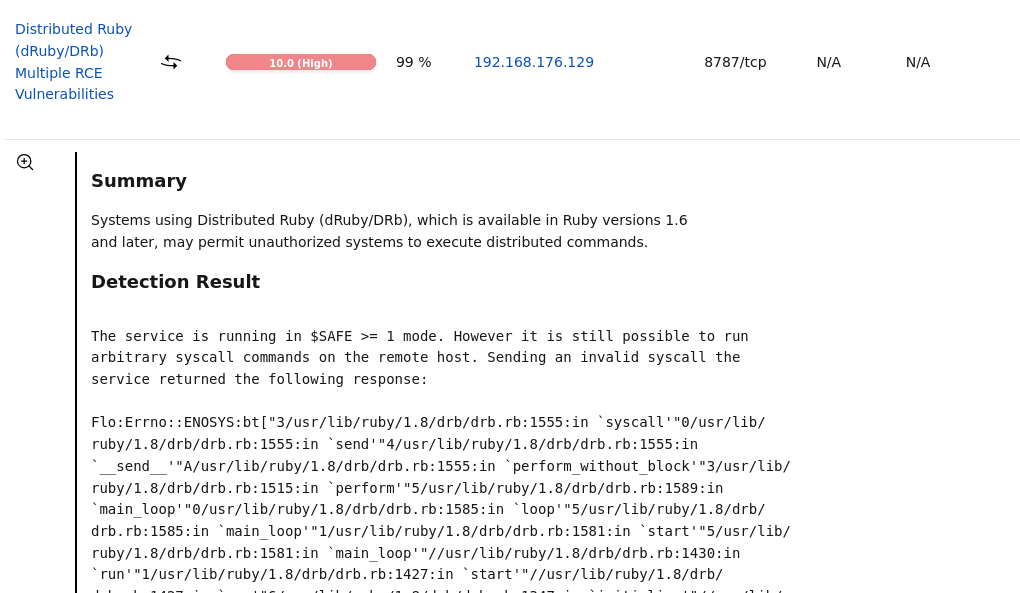

• OpenVAS finding and response from sending an invalid syscal:

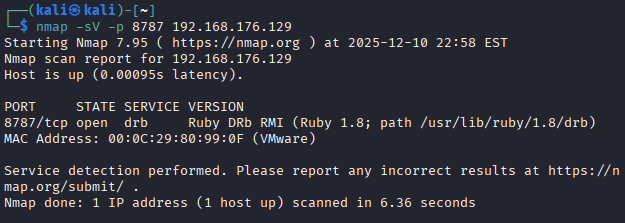

• nmap scan showing DRb service exposed on port 8787:

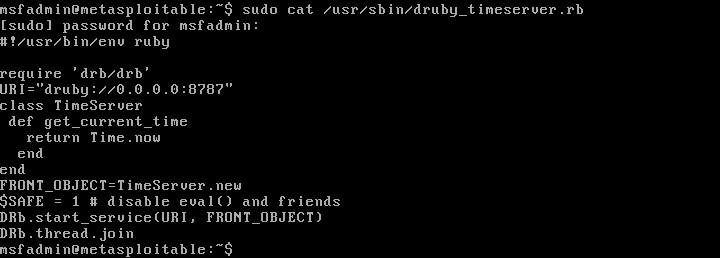

• Snippet of vulnerable DRb Ruby script druby_timeserver.rb running with no ACLs and low $SAFE level

Root cause analysis:
The DRb service was running with insufficient security controls:

• $SAFE level was only 1, which does not restrict system calls or dangerous Ruby operations.
• No DRb ACLs (drb/acl) were configured, allowing any remote host to connect.
• No input sanitization or taint checking was applied.
• The DRb service was exposed on 0.0.0.0:8787, making it reachable from external networks.

This configuration allowed the scanner to execute a malicious DRb request and receive a syscall error trace, proving arbitrary code execution was possible.

Remediation performed:

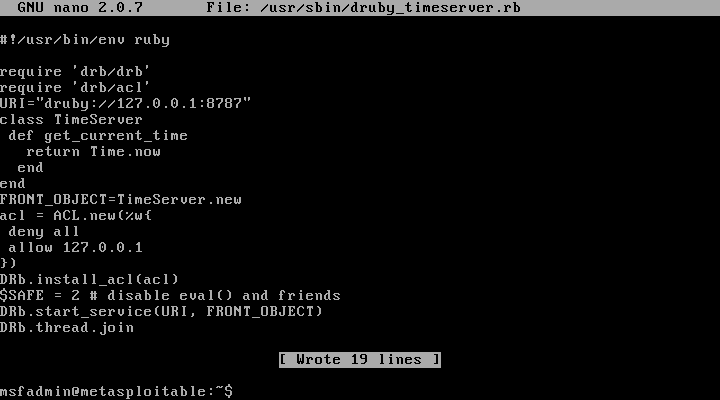

1. Restricted DRb access using ACLs (drb/acl) to allow only trusted hosts.
2. Increased Ruby $SAFE level to 2 to block unsafe remote operations.
3. Rebound the DRb service to 127.0.0.1 to eliminate external exposure. All changes are shown in the combined configuration below:

4. Restarted the DRb service to apply the updated ACL and safety settings.

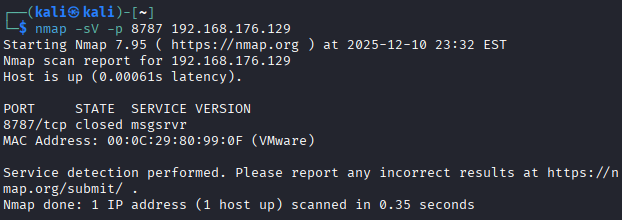

5. Re-scanned using nmap and openVAS to confirm:

---

Vulnerability: Telnet Unencrypted Cleartext Login (Port 23)

Severity: Medium (CVSS 4.8) OpenVAS ID / Reference: NVT – Telnet Unencrypted Cleartext Login

Description (short):
The Telnet service was running on the target host and allowed user authentication over an unencrypted connection. Telnet transmits credentials in cleartext, making them vulnerable to interception by any attacker capable of sniffing network traffic.

Evidence (pre-remediation):

• OpenVAS finding reporting Telnet cleartext authentication:

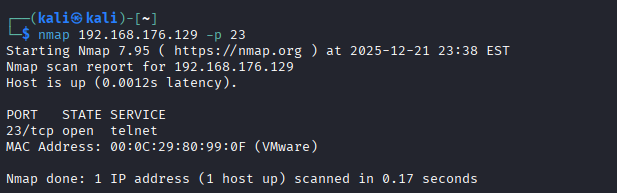

• nmap scan confirming Telnet service exposed on port 23:

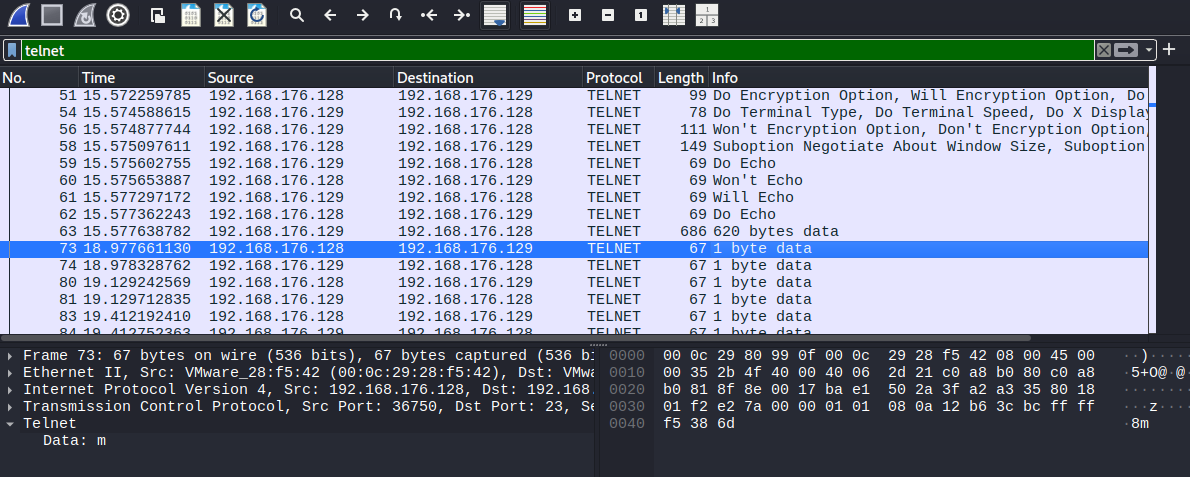

• Wireshark showing that login, password is unencrypted and show as plain text:

Root cause analysis:
Telnet is an outdated remote access protocol that does not provide encryption for authentication or session data. The service was enabled and listening on port 23, allowing credentials to be transmitted in plaintext. Modern security standards assume untrusted networks and require encrypted transport for remote administration.

This configuration violates CIS Benchmark recommendations to disable insecure legacy services and minimize exposure to credential interception attacks.

Remediation performed:

1. Identified the Telnet service entry managed by inetd.
2. Removed the Telnet service configuration from /etc/inetd.conf to prevent inetd from spawning in.telnetd on incoming connections.
3. Rebooted the system to ensure the service did not restart.

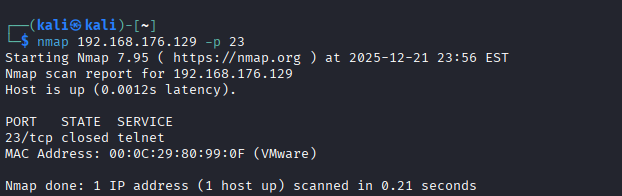

4. nmap scan confirming port 23 is no longer open:

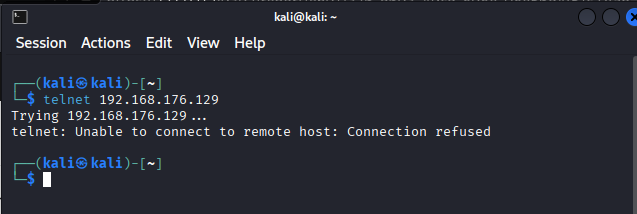

5. Telnet connection rejected:

---

Vulnerability: rsh Unencrypted Cleartext Login (Port 514)

Severity: High (CVSS 7.5)
OpenVAS ID / Reference: NVT – rsh Unencrypted Cleartext Login

Description (short):
The rsh (remote shell) service was running on the target host and allowed remote command execution over an unencrypted connection. The service was configured to permit passwordless authentication or trust-based access, exposing the system to unauthorized remote command execution and credential interception.

Evidence (pre-remediation):

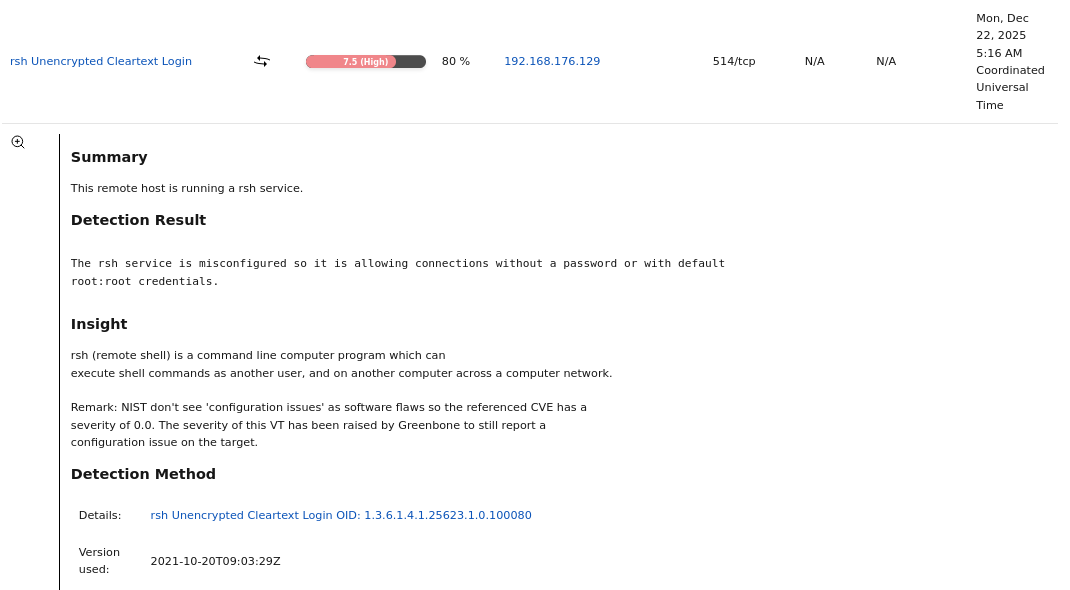

• OpenVAS finding reporting rsh cleartext authentication and passwordless access:

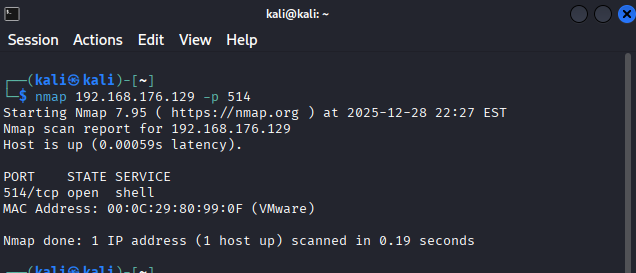

• nmap scan confirming the rsh service (shell) was exposed on port 514/tcp:

Root cause analysis:
The rsh (remote shell) service is a legacy remote access protocol that does not provide encryption or secure authentication mechanisms. In this configuration, rsh was enabled via inetd and permitted remote command execution without a password or with default trust relationships, allowing unauthorized access.

This configuration violates modern security standards and CIS Benchmark recommendations, which explicitly require disabling legacy cleartext protocols and enforcing encrypted, authenticated remote administration.

Remediation performed:

1. Identified the rsh service entry managed by inetd.
2. Removed the rsh service configuration from /etc/inetd.conf to prevent inetd from spawning in.rshd.
3. Rebooted the system to ensure the rsh service did not restart.

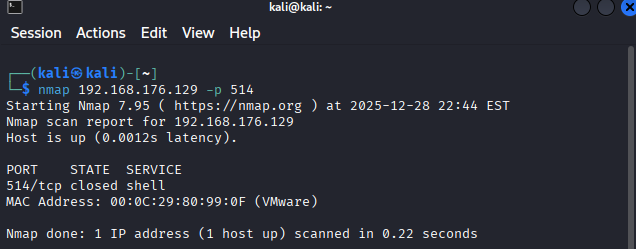

4. nmap scan confirming port 514/tcp is no longer open:

---

Vulnerability: FTP Unencrypted Cleartext Login (Port 2121)

Severity: Medium (CVSS 4.8)
OpenVAS ID / Reference: NVT – FTP Unencrypted Cleartext Login

Description (short):
The FTP service was running on the target host and allowed user authentication over an unencrypted connection. FTP transmits usernames and passwords in cleartext, allowing attackers to intercept credentials through network sniffing.

This configuration violates CIS Benchmark recommendations to disable insecure legacy services and enforce encrypted alternatives for file transfer.

Evidence (pre-remediation):

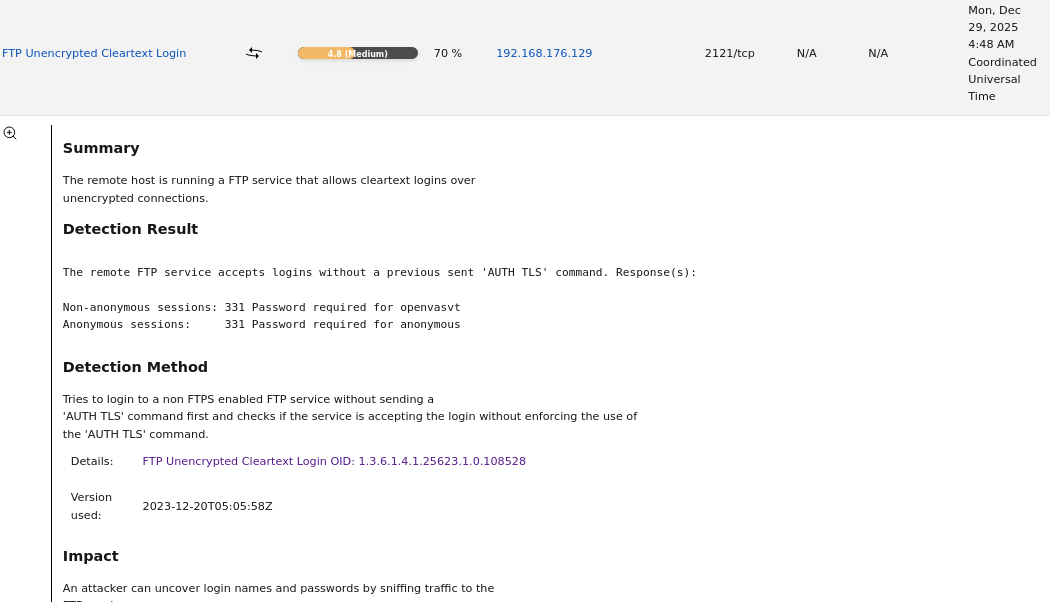

• OpenVAS finding reporting FTP cleartext authentication:

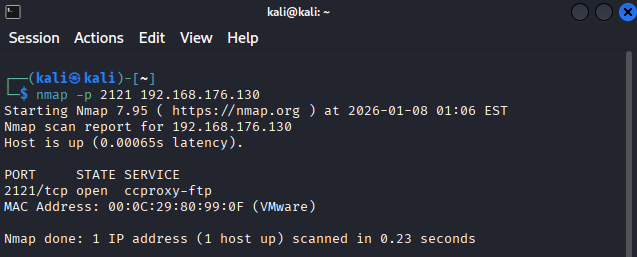

• nmap scan confirming FTP service exposed on port 2121/tcp:

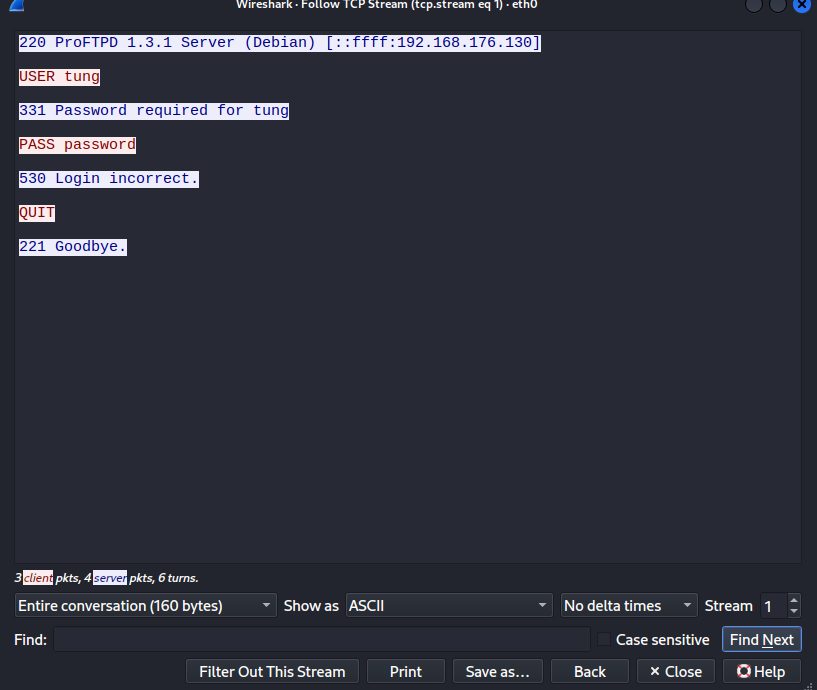

• Wireshark capture showing FTP credentials transmitted in plaintext:

Root cause analysis:
The FTP service was enabled with default configuration and did not enforce encryption. FTP lacks built-in cryptographic protections, making it unsuitable for use on untrusted networks.

Remediation performed:

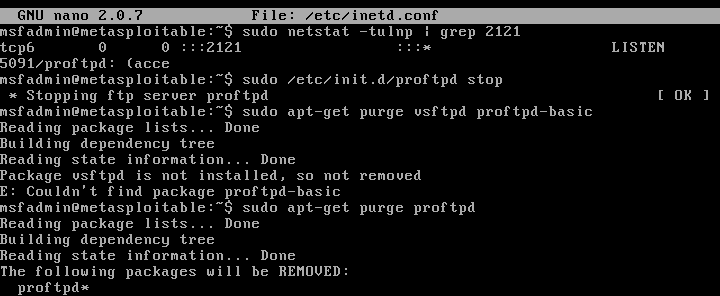

1. Identified the running FTP service (vsftpd) listening on port 2121.
2. Stopped the FTP service to prevent further access.
3. Removed the FTP server package to eliminate the service entirely.
4. Rebooted the system to ensure the service did not restart.
5. nmap scan confirming port 2121 is no longer open:

---

Vulnerability: DistCC Remote Code Execution (Port 3632)

Severity: High (CVSS 9.3)
OpenVAS ID / Reference: NVT – DistCC RCE Vulnerability (CVE-2004-2687)

Description (short):
The DistCC distributed compiler service was exposed on the network and allowed unauthenticated remote command execution. An attacker could execute arbitrary commands on the host without authentication, leading to full system compromise.

This violates CIS Benchmark guidance to disable unnecessary services and reduce attack surface.

Evidence (pre-remediation):

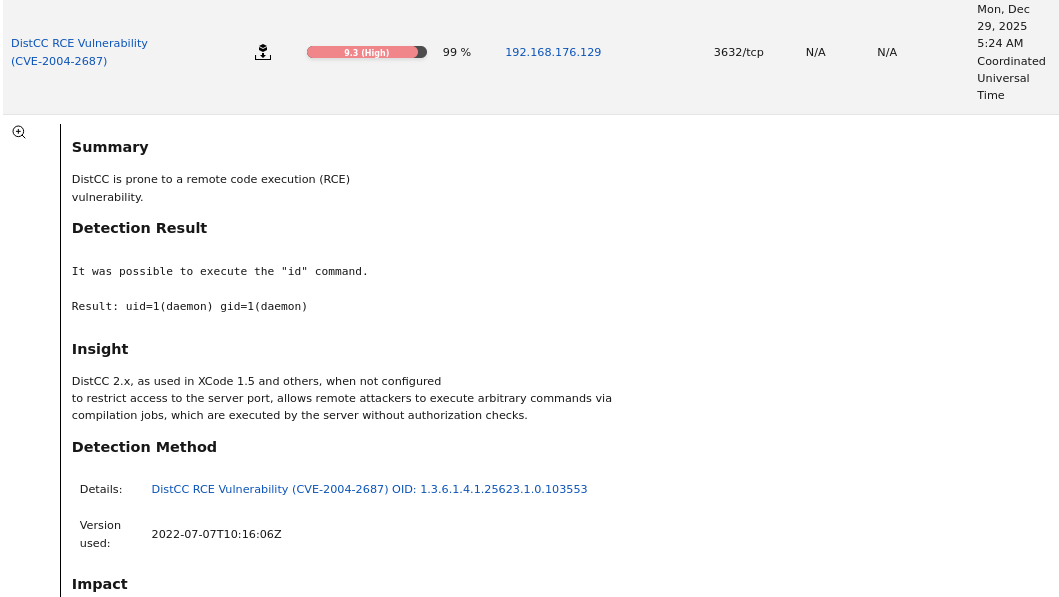

• OpenVAS finding reporting DistCC remote code execution vulnerability:

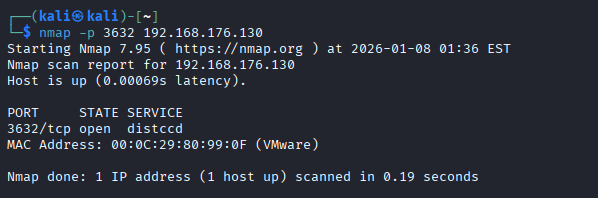

• nmap scan confirming DistCC service exposed on port 3632/tcp:

Root cause analysis:
DistCC was installed and running despite not being required for system operation. The service listens on a network port and accepts commands without authentication, making it a high-risk exposure.

Remediation performed:

1. Identified the running DistCC service (distccd) listening on port 3632.
2. Stopped the DistCC service to immediately prevent exploitation.
3. Disabled DistCC from starting at boot.

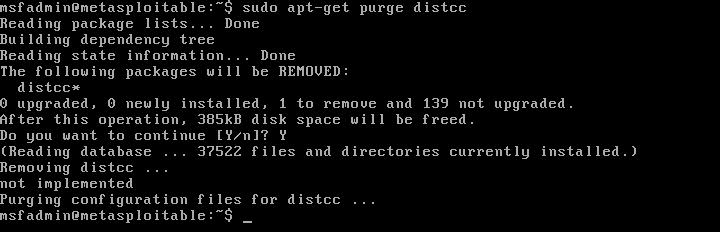

4. Removed the DistCC package from the system to permanently eliminate the vulnerability.
5. Rebooted the system to confirm the service did not restart.

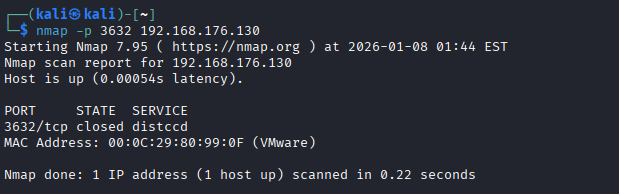

   • nmap scan confirming port 3632 is no longer open:

---

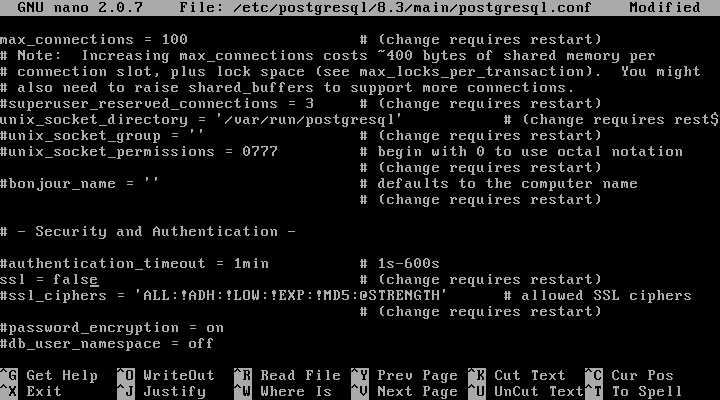

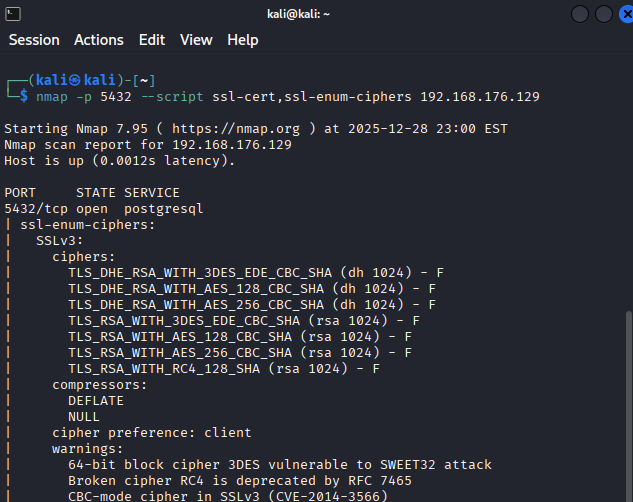

Vulnerability: SSL/TLS OpenSSL CCS Injection Vulnerability (Port 5432)

Severity: High (CVSS 7.4)
CVE: CVE-2014-0224
OpenVAS ID / Reference: NVT – SSL/TLS: OpenSSL CCS Man in the Middle Security Bypass Vulnerability

Description (short):
The system was running a vulnerable version of OpenSSL that is susceptible to the ChangeCipherSpec (CCS) injection attack. This vulnerability allows a man-in-the-middle attacker to bypass SSL/TLS security by forcing the use of a zero-length master key, potentially allowing session hijacking and disclosure of sensitive information.

Evidence (pre-remediation):

• OpenVAS finding reporting the OpenSSL CCS injection vulnerability:
• nmap scan confirming PostgreSQL was exposed on port 5432/tcp and capable of SSL/TLS communication:
• OpenSSL version check on the target host showing a vulnerable OpenSSL release:

Root cause analysis:
The installed OpenSSL library version was outdated and fell within the range of affected versions especially 0.9.8g in this case. This versions do not properly validate ChangeCipherSpec messages during the TLS handshake.

This issue exists due to insufficient patch management and failure to update cryptographic libraries in accordance with CIS Benchmark recommendations.

Remediation performed:
Due to the intentionally vulnerable design of Metasploitable 2, traditional package-based patching of OpenSSL was not feasible. As a result, compensating controls aligned with CIS Benchmarks were implemented.

1. Disabled SSL support in PostgreSQL to remove the vulnerable cryptographic layer:
2. Applied host-based firewall rules to restrict access to PostgreSQL (port 5432) to trusted hosts only:
3. Restarted the PostgreSQL service to apply configuration changes

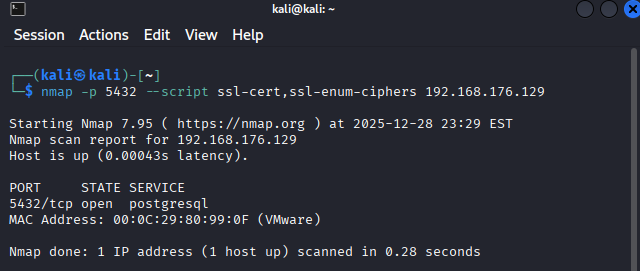

4. nmap scan produced no SSL/TLS-related output on port 5432, indicating that PostgreSQL was no longer advertising or accepting SSL/TLS connections
